SUCTION DOUGH DIVIDER - SD-300

An automatic suction-fed dough divider which can be used either as 1-pocket or as a 2-pocket. Strong construction adapted to heavy-duty production.

Features & Benefits

  • Weight range, two versions: 40 - 1000 g or 150 - 2300 gram.
  • Variable speed with frequency converter.
  • Capacity 1500-3000 as two pocket and 750 - 1500 as one pocket (the two measuring pistons are easily connected to one piston).
  • Dough knife in stainless steel.
  • Unique emptying function (hopper reaches down to the dough knife).
  • Gentle dough handling.
  • Dough chambers in high quality Ni-resist steel ensures high weight accuracy and long durability.
  • Heavy duty construction.
  • 90 lit stainless steel hopper as standard (~ 70 kg dough).
  • The 90-liter hopper is equipped with a large safety ring and a safety edge resulting in the machine stopping when the edge is subjected to pressure.
  • 225 lit stainless steel hopper (~ 150 kg dough) (option).
  • The 225-liter hopper is equipped with a safety edge resulting in the machine stopping when the edge is subjected to pressure.
  • Machines with a 225-liter hopper will also be delivered with a step ladder that will make working with the machine easier.
  • Non-stick coated hopper (option).
  • Easy- handling and cleaning – all covers in stainless steel and removable.
  • Oil reservoir 11 lit, easy to fill.
  • Stainless steel execution.
  • Available with left or right outfeed (standing in front of operation panel).

PLC Touch screen

  • The SD-300 is now equipped with a wide screen 800X450 ABB 7" color touch panel
  • It's easier to reprogram the panel since this is done with a USB stick or SD card instead of with a computer.
  • Preset dough piece counter, when number of dough pieces and speed is set the panel will display the time when the batch is done.
  • Possible to store up to 8 different programs in the panel, the different settings in a program are:
    * Speed (pcs/h)
    * Number of pieces
    * Outfeed speed
    * Weight reference
    * Dough weight
    * Dough type
    * Setting of suction piston (stroke)
    * Number of chambers
  • Available languages: Swedish, English, Polish, Russian, German, Spanish and Romanian.
  • Functions for Bread Lines - Start, Stop and Speed.

Product details

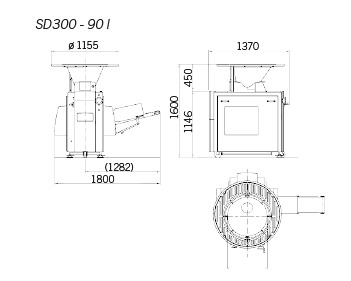

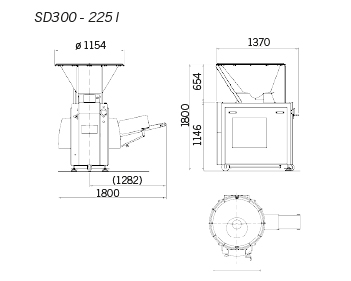

The drawing shows a SD-300 with outfeed on the right side.

MODEL Capacity (pcs/hour) Weight Range
2-pocket SD-300 1500-3000 40-400 g
1-pocket SD-300 750-1500 100-1000 g
    2-pocket SD-300XL 1500-3000 150-1150 g
   1-pocket SD-300XL 750-1500 250-2300 g
