INSTORE BREAD LINE 120

Capacity 500-1200 pieces/hour

The Instore Breadline 120 is a bread line that is easy to adapt to both the layout of the premises and to the bread that is to be baked. Specially made for producing bread without need for an intermediate proving time. In addition, the entire flow can be easily and safely managed by one person, from start to finish. The Instore Bread Line 120 can be set up in three different ways depending on preference and available space.

Features & Benefits

Good bakery machines can be adjusted to the daily work – not vice versa. The Instore Bread Line 120 is a bread line that is easy to adapt to both the layout of the premises and to the bread that is to be baked. In addition, the entire flow can be easily and safely managed by one person, from start to finish.

  • Capacity from 500 up to 1200 pieces per hour.

  • Weight range from 50 up to 1000 grams.

  • Large pressure board working width up to 650 mm.

  • Power consumption  2.4 kW.

  • Flexibility: The Instore Bread Line 120 can be set up in three different ways depending on preference and available space.



SD-180XS
Dough Divider with variable speed 500–1200 pcs/h. 90 litre stainless steel hopper. Weight range 50–1000 g.

BR-2000
Inclined belt rounder with easily adjustable moulding track for dough weights from 50 up to 1000 grams. The moulding track is easy to  fold up when its not in use.

MO-300S
Moulder with centrally adjustable infeed hopper, curling net and foldable pressure board 650x1100 mm. Adjustable side guides and ergonomic collection tray.



How it is done
The dough is ready to start its transformation into finished bread. It is first placed in the hopper on the divider and then the speed and weight are set, to obtain the desired number of pieces and size. Once this is done, it is divided up into pieces of dough based on these settings.  The dough rolls on in the belt rounder, which has been set to the correct height, based on the size of the pieces. The baker keeps an eye on the flow and checks that everything is running as it should. Then he collects the pieces and places them on the pressure board, where they will rest for a while on cloth. The bread is then shaped into its final form in the moulder. Thanks to the entire process, the baker has got the dough ready for the prover, simply and efficiently. The ­design of the bread line means it can be operated safely by just one person. The procedure is then repeated using different settings to create different types of bread. The end ­result is hot dog buns, French bread, two different types of baguette and rolls.

Downloads

Watch video

Product details

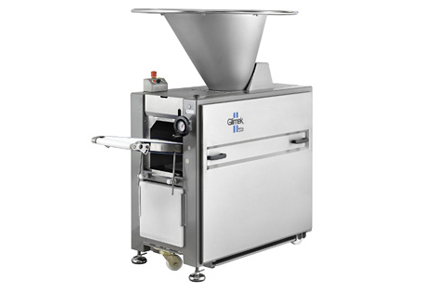

SD-180 XS Dough Divider with variable speed 500-1200 pcs/h. 90 litre stainless steel hopper. Weight range 50-1000 g.

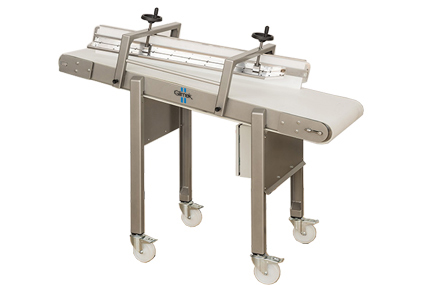

BR-2000 Inclined belt rounder with easily adjustable moulding track for dough weights from 50 up to 1000 grams. The moulding track is easy to fold up when its not in use. Operating side right/left.

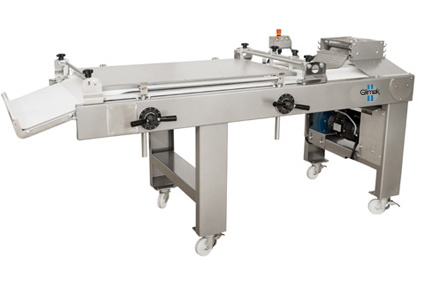

MO-300S Moulder with centrally adjustable infeed hopper, curling net and foldable pressure board 650 x 1100 mm. Adjustable side guides and ergonomic collection tray. Operating side right/left.

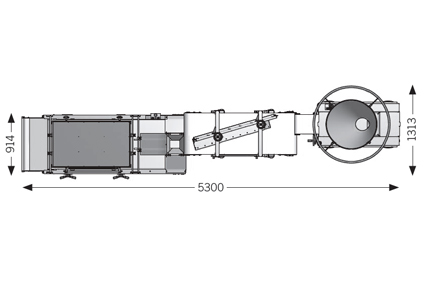

Straight layout.

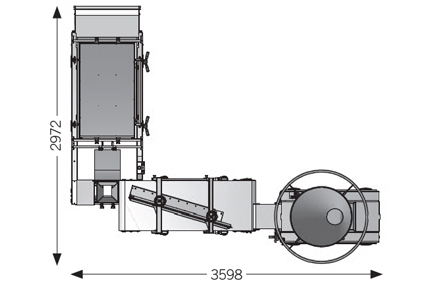

Right angle layout.

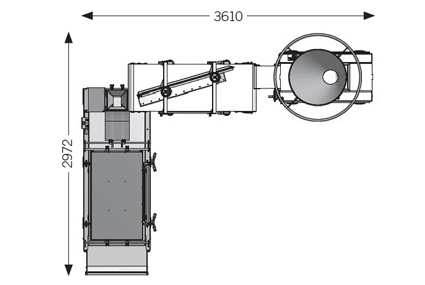

Left angle layout.

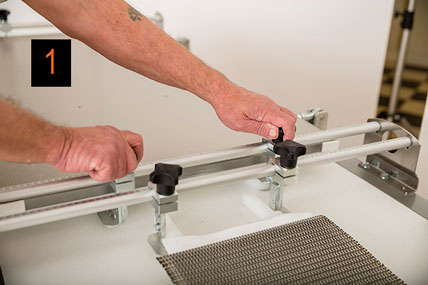

1. Simple settings aid the user to quickly set up the bread line for the current product.

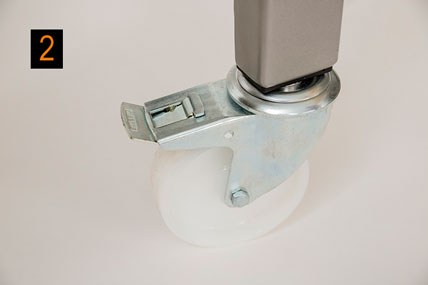

2. Lockable wheels to give the option to set up the bread line in different ways, depending on the layout of the premises. When the line is not in use, it can be easily rolled out of the way.

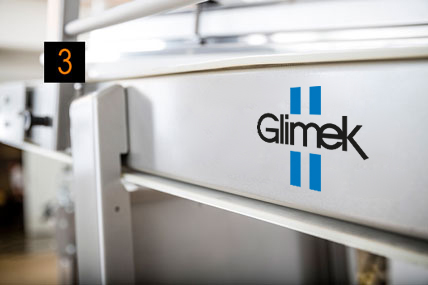

3. Robust high-quality design with tried and tested technology for a reliable bread line, with little need for servicing.

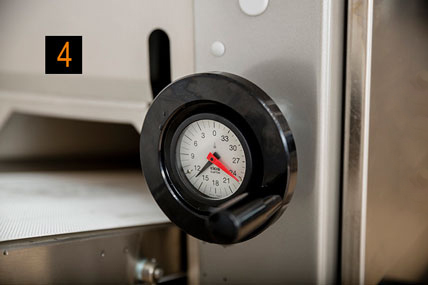

4. High weight accuracy, which allows the dough pieces dough to be adjusted in a weight range from 50 up to 1000 grams. SD-180XS.

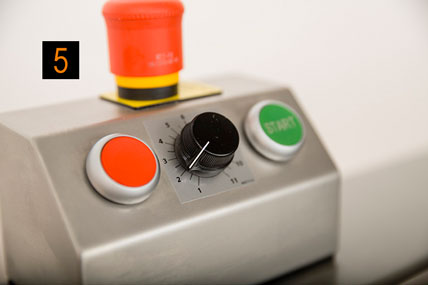

5. Continuous speed control to enable the easy setting of the number of dough pieces per hour.

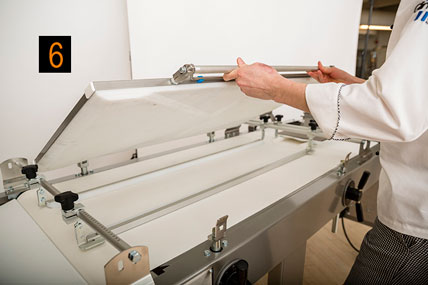

6. The easy way to fold up the pressure board makes it a simple process when handling products which do not need rolling and moulding, for example pizzas and flatbread. MO-300S.

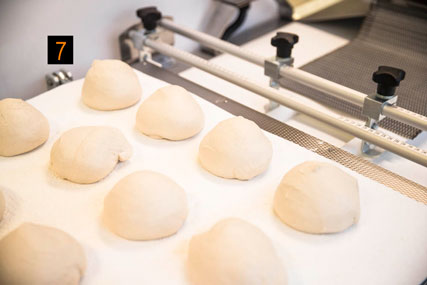

7. Top of pressure board can be used for resting dough pieces on a cloth or similar.

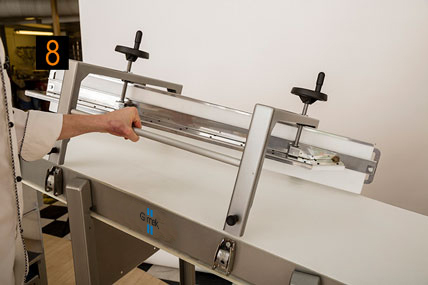

8. The moulding track on BR-2000 is provided with gas springs for easier opening. To be used when you do not want to mould your products. The moulding track lifts up and the belt transfers the products directly to the MO-300S.
